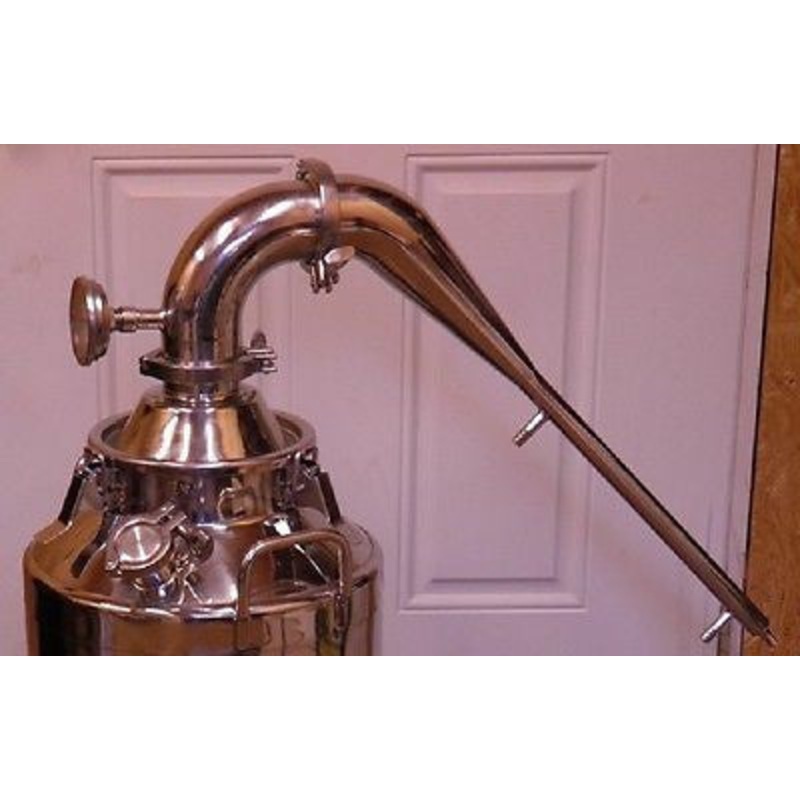

This is for the head/column only and condenser only. The boiler is not included. This2″Stainless SteelPot Still Head comes with a Liebig Condenser and a commercial grade thermometer with a 3″ face. This column has a much longer condenser than those that our competitors have on their columns of this same type. Since our condenser is longer run times are shorter and less cooling water is needed.Solid TIG welded construction, which is much stronger than Soldering or Brazing. Includes structured copper packing for the column.This column gives you the best of both worlds. You get the strength and durabilityof stainless and the flavor improving qualities of copper.Comes With:

• Commercial grade thermometer with a 3″ face
• 2″ Tri Clamp stainless ferrule connection welded to the base of the column for connecting to a still
• 2″ Tri Clamp with 2″ Silicone Gasketfor connecting the column to a still.
• 2″ Tri Clamp with 2″ Silicone Gasketfor connecting the column to the condenser
• Built in stainless Liebig condenser.
• 1/2″ hose barb connections on the condenser for cooling water.
• Super heavy duty construction using308 stainless welding rod and heavy gauge 304 stainless steel.
• 1 Roll of structured Copper Packing

This item comes with a 1 year warranty which covers manufacturing defects and leaks.This Pot Still Column is built to last a lifetime. Pass it down to future generations.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a1.5″ Tri Clamp to 1/2″ hose barb adapteris not 1.5″ inches in any dimension, but the Tri Clamp end will fit any other 1.5″ Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension “B” below) and consult the chart below, or feel free tocontact us.

Pipe Outer Diameter
A

Flange Outer Diameter
B

Pipe Inner Diameter
C

1″

1.98″

.87″

1.5″

1.98″

1.37″

2″

2.52″

1.87″

2.5″

3.05″

2.37″

3″

3.58″

2.87″

4″

4.68″

3.83″

6″

6.57″

5.78″

8″

8.57″

7.78″

10″

10.57″

9.69″

12″

12.57″

11.81″
